X13
AC1200 Dual-Band Wireless VoIP XPON Router
AC1200Wi-Fi 5XPONVoIP
Fiber and a landline in one compact unit, the practical choice for ISP rollouts that include voice.
What makes the X13 different
- Based on Latest Airoha / MediaTek chipset
- Higher Flash and RAM for stable performance
- 4 High Gain Antennas for enhanced wi-fi range
- Smart MU-MIMO keeps every connection smooth
- EasyMesh Compatible
GPON and EPON compatibleWPA3 Encryption4 Gigabit Ethernet LAN portsParental controlClearer VoIP CallsRemote Management
Everything plugs in here

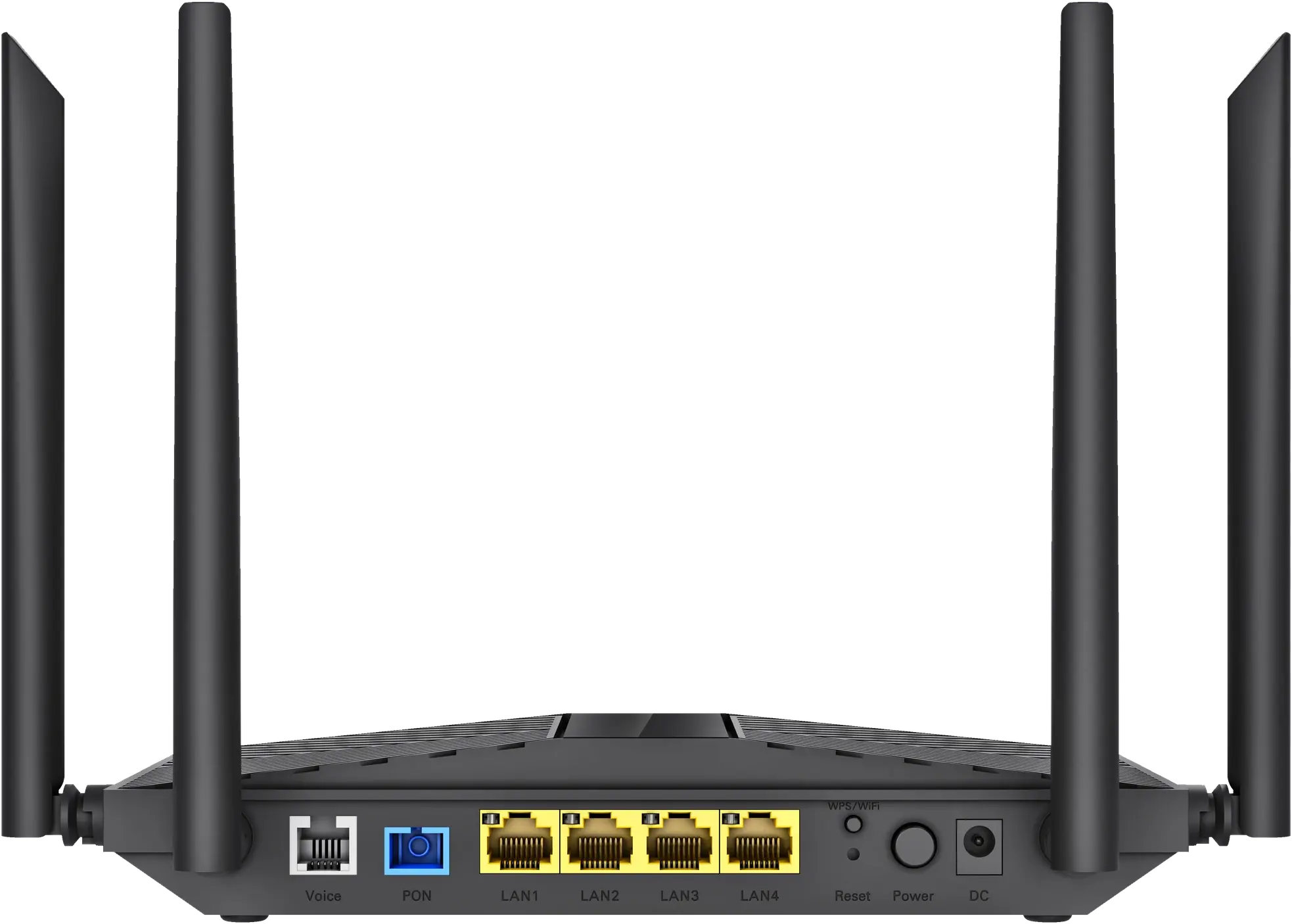

The X13 rear panel, port by port.
Rear panel
Full specifications
Values marked TBD are still to be confirmed and will be published once the datasheet is finalized.
Wireless
- Wi-Fi standard
- Wi-Fi 5 (802.11ac)
- Wi-Fi class
- AC1200
- Bands
- Dual-band 2.4 GHz + 5 GHz
- 2.4 GHz data rate
- 300 Mbps (802.11n)
- 5 GHz data rate
- 867 Mbps (802.11ac)
- Stream technology
- Smart MU-MIMO
- Front-end module
- High-power external FEM (eFEM) on 5 GHz
- Antennas
- 4 × high-gain external
- Antenna gain
- 5 dBi
Connectivity
- PON type
- XPON - GPON and EPON compatible
- WAN port
- XPON fiber (GPON / EPON)
- LAN ports
- 4 × Gigabit Ethernet
- Telephone port
- 1 × RJ11
- Buttons
- WPS / Wi-Fi, Reset, Power on/off
Hardware
- Chipset
- Airoha / MediaTek
- RAM
- 256 MB
- Flash memory
- 128 MB
- Dimensions (W × D × H)
- TBD
- Power input type
- DC jack
- Power method
- DC
- Power input
- 12 V / 1.5 A
- Operating temperature
- 0°C – 40°C (32°F – 104°F)
- Storage temperature
- -40°C – 70°C (-40°F – 158°F)
- Operating humidity
- 10% – 90% non-condensing
- Storage humidity
- 5% – 90% non-condensing
Software & security
- Encryption
- WPA3
- Mesh
- EasyMesh compatible
- Parental control
- Yes
- Remote management
- Yes
- Voice
- VoIP telephony
- IPv4 / IPv6 support
- Yes
Compliance & warranty
- Origin
- Made in India
- Certifications
- TEC
- Warranty
- 3 years
- Box contents
- Router, power adapter
