R12
AC1200 Dual-Band Wireless Gigabit Router
AC1200Wi-Fi 5Ethernet
A straightforward gigabit router that plugs into any existing modem or ONT and just works.
What makes the R12 different
- Based on Latest Airoha / MediaTek chipset
- Higher Flash and RAM for stable performance
- 4 High Gain Antennas for enhanced wi-fi range
- Smart MU-MIMO keeps every connection smooth
- 1G WAN Port
- EasyMesh Compatible
WPA3 Encryption3 Gigabit Ethernet LAN portsParental controlRemote Management
Everything plugs in here

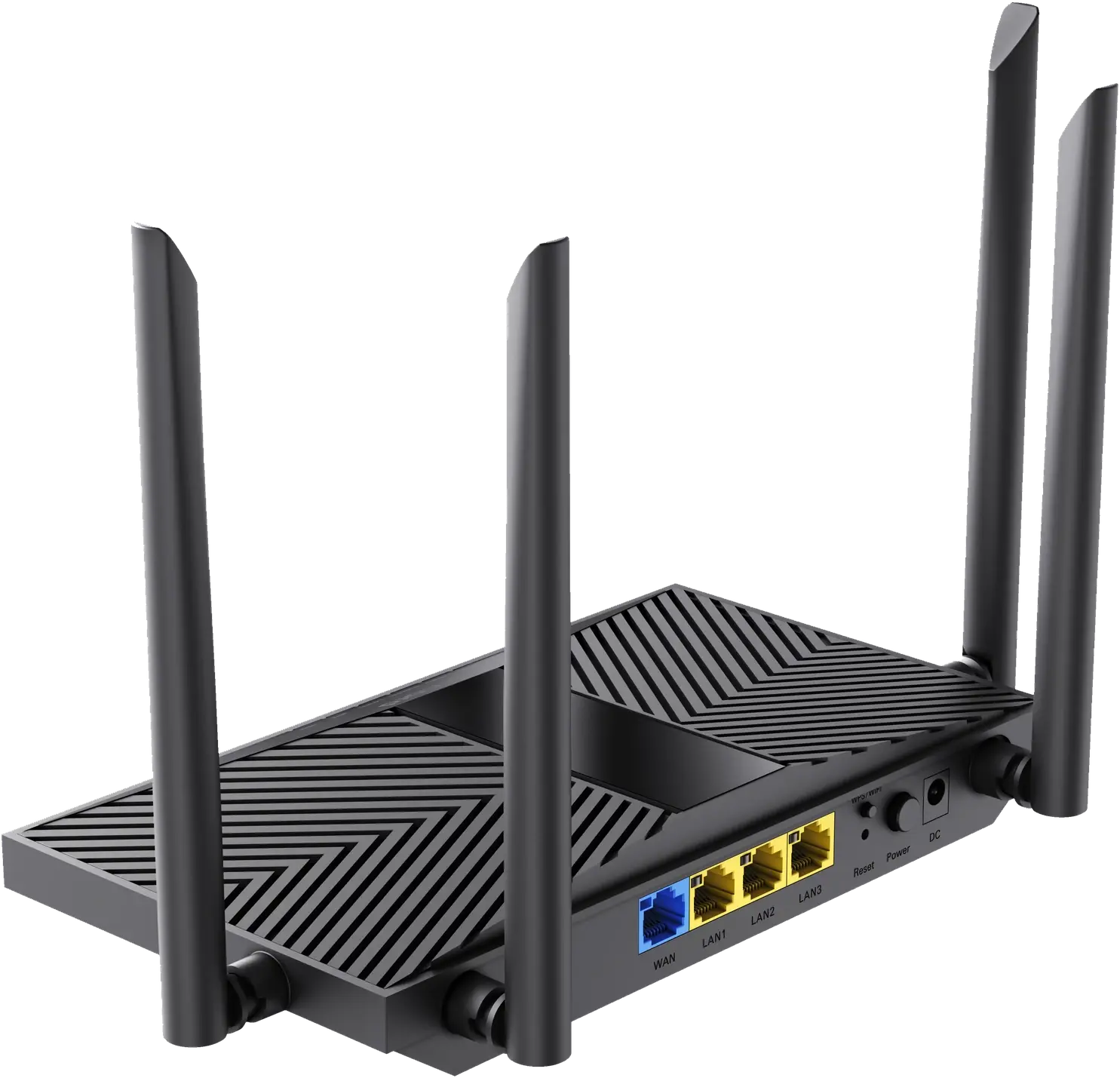

The R12 rear panel, port by port.
Rear panel
Full specifications
Values marked TBD are still to be confirmed and will be published once the datasheet is finalized.
Wireless
- Wi-Fi standard
- Wi-Fi 5 (802.11ac)
- Wi-Fi class
- AC1200
- Bands
- Dual-band 2.4 GHz + 5 GHz
- 2.4 GHz data rate
- 300 Mbps (802.11n)
- 5 GHz data rate
- 867 Mbps (802.11ac)
- Stream technology
- Smart MU-MIMO
- Front-end module
- High-power external FEM (eFEM) on 5 GHz
- Antennas
- 4 × high-gain external
- Antenna gain
- 5 dBi
Connectivity
- WAN port
- 1 × Gigabit WAN
- LAN ports
- 3 × Gigabit Ethernet
- Buttons
- WPS / Wi-Fi, Reset, Power on/off
Hardware
- Chipset
- Airoha / MediaTek
- RAM
- 256 MB
- Flash memory
- 128 MB
- Dimensions (W × D × H)
- TBD
- Power input type
- DC jack
- Power method
- DC
- Power input
- 12 V / 1.5 A
- Operating temperature
- 0°C – 40°C (32°F – 104°F)
- Storage temperature
- -40°C – 70°C (-40°F – 158°F)
- Operating humidity
- 10% – 90% non-condensing
- Storage humidity
- 5% – 90% non-condensing
Software & security
- Encryption
- WPA3
- Mesh
- EasyMesh compatible
- Parental control
- Yes
- Remote management
- Yes
- IPv4 / IPv6 support
- Yes
Compliance & warranty
- Origin
- Made in India
- Warranty
- 3 years
- Box contents
- Router, power adapter, RJ45 Ethernet cable
